Szczegóły Produktu:
|
| Woltaż: | AC100-120V/AC220-240V | Odpowiedni rodzaj tkaniny: | Dzianinowa lub tkana bawełna, pościel, jedwab, wełna, włókno chemiczne, nylon.oxford itp. |
|---|---|---|---|
| Przetwarzanie mediów: | Roll to Roll + Auto Feeding + Auto Roll Up | Rodzaj atramentu: | Tusz sublimacji, atrament pigmentowy |
| Kolor i strona: | WIELOBARWNOŚĆ | Stosowanie: | Pole reklamowe wewnętrzne i zewnętrzne |
| Kompatybilny system operacyjny: | Windows 7 i Windows 10 | Oprogramowanie: | ONYKS |
| Moc grzejnika: | 6kW | Ocena automatyczna: | Automatyczny |

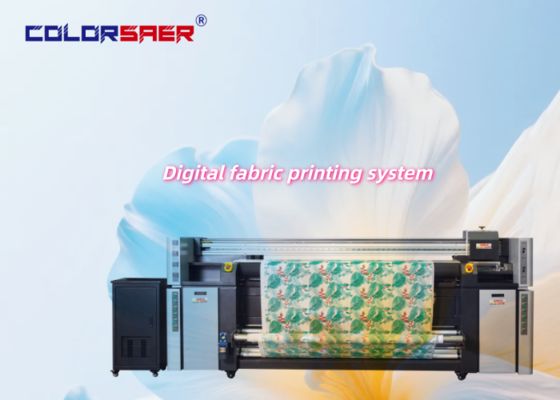

Product name:Lifetime Warranty High Speed 2.2m Dye Sublimation Textile Printer Flag Printing Machine
Machine Specifications:
| Product Parameter | |
| Model type | CSR2200 |
| Print head | 3 pieces Epson i3200 |
| Ink | Sublimation ink, pigment ink |
| Number of nozzles | (400 nozzles*8lines)*3head |
| Color | Dual CMYK |
| Print head high | 1.5mm/6mm (adjustable) |
| Ink supply mode | Continuous ink supply |
| Max materials width | 2200mm |
| Max printing width | 2000mm |
| Roll outer diameter | 3 inch |
| Maximum weight for roll material | 100kg |
| Interface | USB2.0 |
| RAM | 128M |
| Printer Power | AC100-120V/AC220-240V(adjustive) 50/60HZ |
| Power | Heater 3.5kw |
| Printer 100w | |
| Temperature | 30-32℃ |
| Humidity | 40-60%(Non-condensing) |
Machine working speed :
Main Features :
Guid Rail:
Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit ．
X axis and Yaxis:
X axis and Y axis are using AC servo motors.
Print head:
Three Epson Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy. Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.
Advantages:
Application industry:
