Szczegóły Produktu:
|
| Stosowanie: | Pole reklamowe wewnętrzne i zewnętrzne | Kompatybilny system operacyjny: | Windows 7 i Windows 10 |
|---|---|---|---|
| Oprogramowanie: | ONYKS | Moc robocza maszyny: | 9KW |
| Ocena automatyczna: | Automatyczny | Odpowiedni rodzaj tkaniny: | Bawełna i poliester |
| Przetwarzanie mediów: | Roll to Roll + Auto Feeding + Auto Roll Up | Rodzaj atramentu: | Atrament sublimacyjny i atrament pigmentowy |
| Zasilanie: | AC380, 50/60 Hz | Kolor i strona: | Wielobarwność |
| Podkreślić: | direct to textile digital printer,large format sublimation printer,KJ48-QL print head fabric plotter |
||

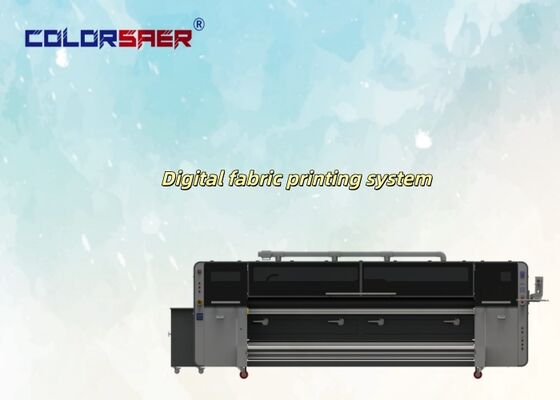

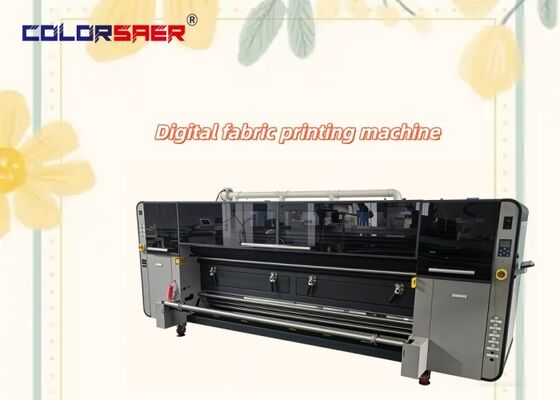

Product name:Fast Speed Direct To Textile Digital Fabric Printing System With KJ48-QL Print Heads Large Format Printer Sublimation Digital Printer
Machine Specifications:
| Product Parameter | |
| Model type | CSR3200 |
| Print head | 4 pieces KJ4B-QL |
| Ink | Sublimation ink, pigment ink |
| Number of nozzles | 2656 nozzles |
| Color | CMYK |
| Print head high | 1.5mm/6mm (adjustable) |
| Ink supply mode | Continuous ink supply |
| Max materials width | 3300mm |
| Max printing width | 3200mm |
| Roll outer diameter | 3 inch |
| Maximum weight for roll material | 100kg |
| Interface | USB2.0 |
| RAM | 128M |
| Printer Power | AC380V ,50/60HZ |
|
Power |
Heater 3KW |
| Printer 6KW | |
| Temperature | 30-32℃ |
| Humidity | 40-60%(Non-condensing) |
Machine working speed:
Main Features:
Guid Rail: Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit ．
X axis and Yaxis:
X axis and Y axis are using AC servo motors.
Print head: 4 Pcs kJ48-QL Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy. Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.
Machine Advantages:
Negetive pressure advantages:
1) Ink supply system is sealed , machine can work under a constant pressure
2) Can make sure machine work stable
3)Print heads without nozzle blocking when working
4)No need to wash print head high frequent
5)Machine can hover for a long time during working period
FAQ:
1) If I buy the machine, can you supply the ink, material, etc also?
A: Yes sure, please use the Original ink, it's better for the printer maintance, we can supply the relate material also.
2) I want to open a new business, can you give me some ideas?
A: Yes, we can, please tell me what products you want to make, and your request, we can offer you some projects.
3) How about the after-sale service?
A: Machine guarantee 12 month, printheads are no guarantee. We supply the on line technology even machine out of guarantee.
4) How can I place order?
A: Contact us about your order details,we will prepare the PI .
5) How can I pay you?
A: Uaually we accept T/T, Western Union
Professinal Service:
SAER COLOR redefines service standerds enhance customer experience in all aspects:
1.SAER has more than20 years of foreign trade experience, focusing on the domestic printer industry. We are reliable,trusted,independent research and development, industry reputation are second to none;
2.365 days customer service and after-sales online service, can supply for one-on-one service.
3.Provide global installation services,make sure that each customer completes theinstallation within with 5 days and can start printing
4.Professional team makes packing list, bill of lading, commercial invoice, certificate of origin ,packing declaration, etc. To make sure customers have no worries about customs clearance and delivery.
Logistics Service:
Application industry:
